Microduct

Name: Microduct
Brand: AD-Tech

HDPE protective duct for aerial, wall-mounted and buried routes, with a low-friction inner layer for cable blowing.

HDPE Underground Cable blowing

Key specifications

MaterialHigh-density polyethylene (HDPE)

Size range4/2.1 to 20/16 mm

Inner tubes1 to 24+1

Working pressureup to 15 bar

Coil length500 / 1000 m

Colourswhite, black, orange

Download catalog

CatalogPersian·Coming soonCatalogEnglish·3 pages·2 MB

Price & stock enquiry

Fill in the form and a sales engineer will contact you within 24 business hours.

AD-Tech microduct is an HDPE protective duct for fiber-optic cable, produced with a low-friction inner layer so cable can be blown over long distances. It is used on aerial, wall-mounted and buried routes in FTTX access networks.

Key features

High-density polyethylene body with a low-friction inner layer for cable blowing.
Stable inner and outer diameters for reliable connectors and joints.
UV-stabilised grades for aerial installation.

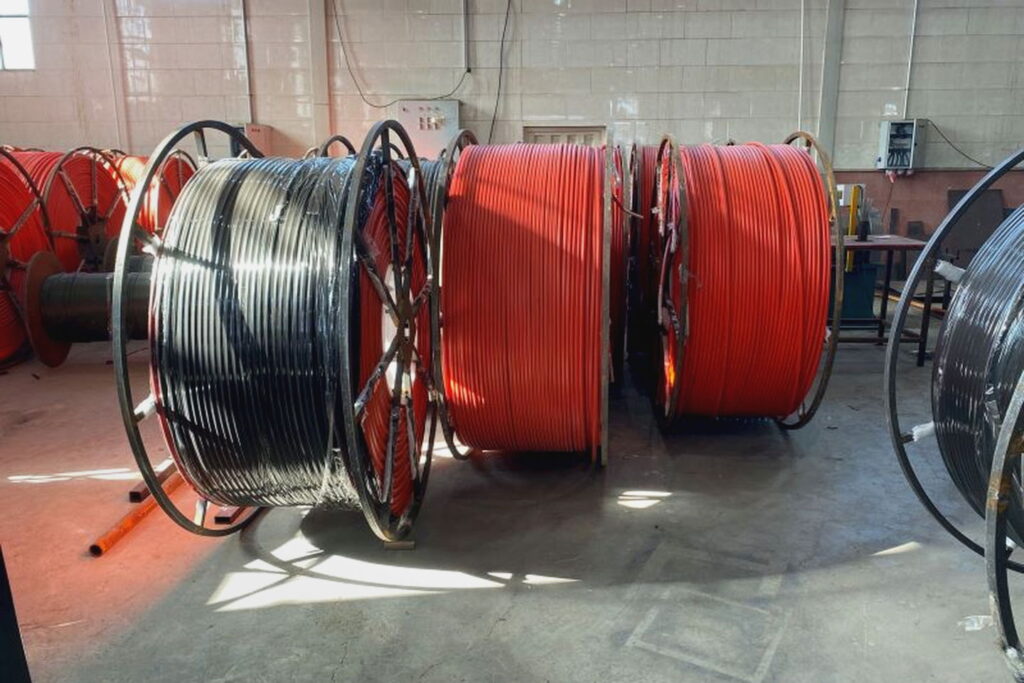

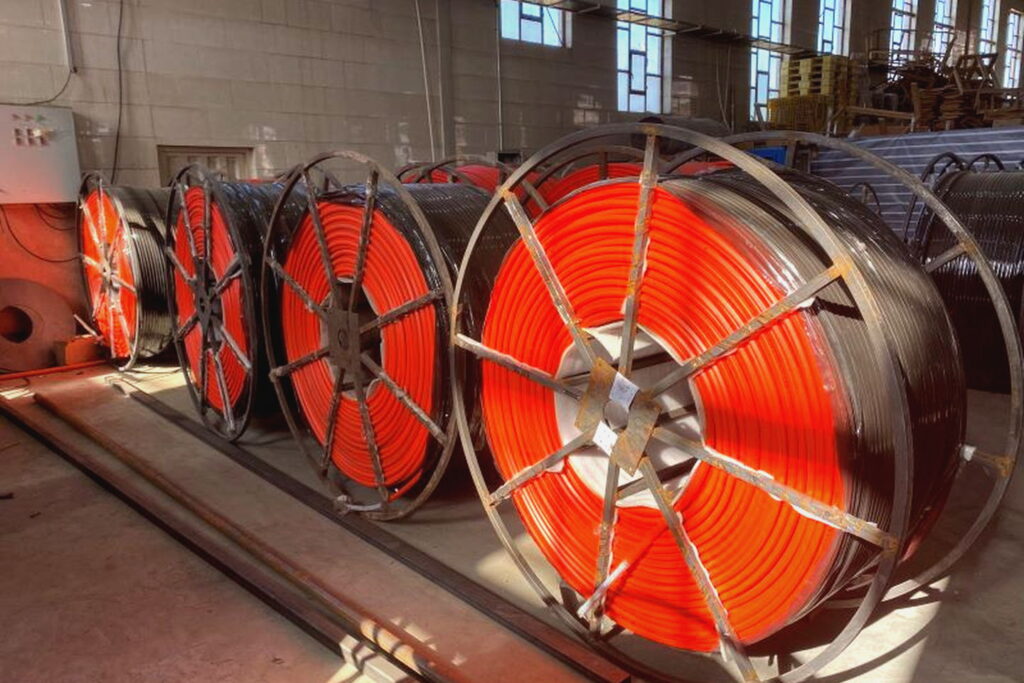

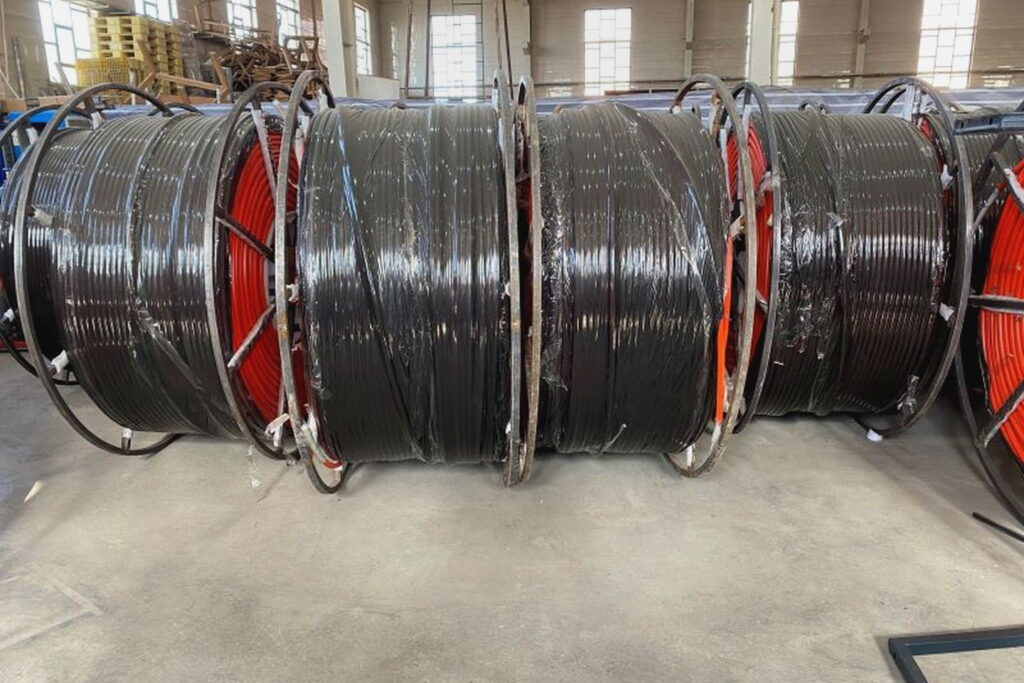

Coils in 500 m and 1000 m lengths, with custom lengths on request.

Applications

◈

Feeder routesopen trench or HDD, using thick-walled duct or a high-strength buried duct bundle

◈

Last mileflat or link duct for micro/mini trenching along busy urban routes

◈

Secondary distribution and drops5/3.5 or 7/3.5 mm microduct for direct ABF blowing to the subscriber

Product family

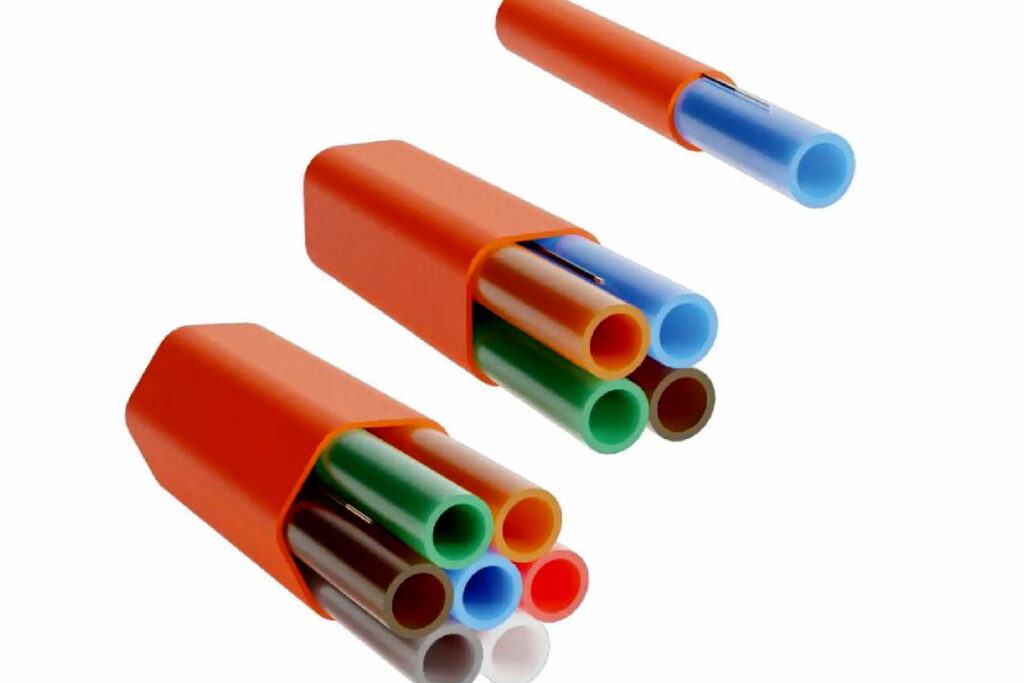

Microduct: 7/4 single tube and 14/10 assemblies

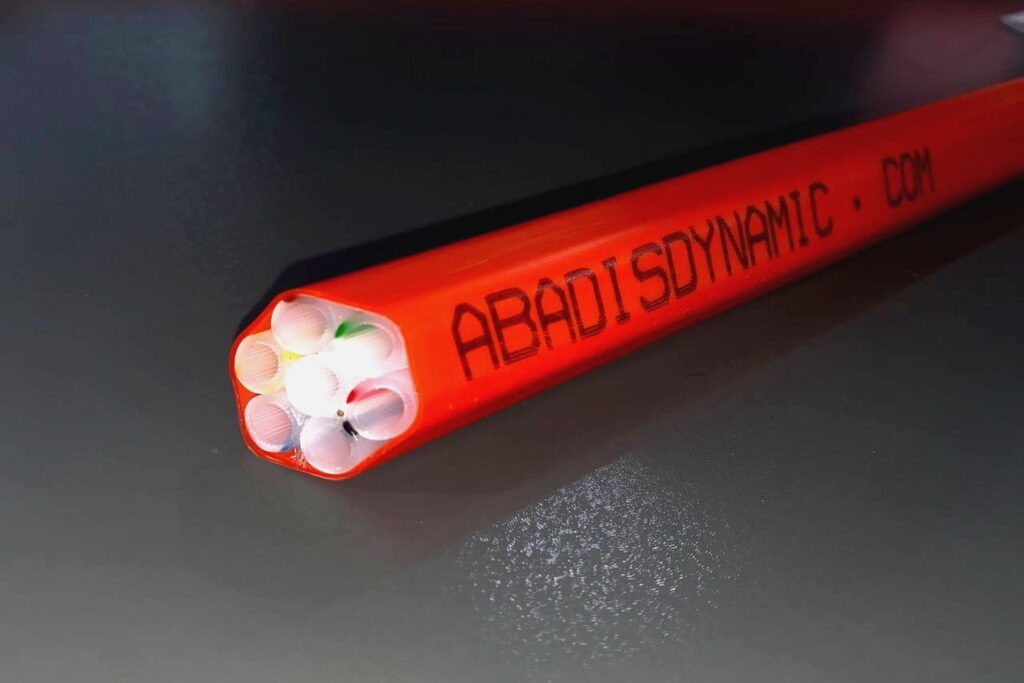

The 7/4 single microduct is made from composite polymer (PP-PA) and is designed for direct burial; its solid low-friction inner surface lets fibre or nano cable be air-blown through it, and the composite material removes the need for extra protection underground. The 14/10 assemblies come in 1 to 7-way configurations with an HDPE outer sheath, longitudinal grooves for maximum installation lengths and an integrated tracer wire under the sheath.

Direct burialInstall directly into the ground without additional protection
Low-friction boreOptimised for air-blown fibre and nano cable
Standard colour codeEach tube identified per DIN VDE 0888 (14/10: S12 or no colour)
Longitudinal groovesMaximum installation length in the 14/10 assemblies
Tracer wireLocates the buried route, integrated under the 14/10 sheath
Temperature rangeOperation and storage from −40 to +60 °C

Microduct: 7/4 single tube and 14/10 assemblies — 7/4 mm single microduct

Product range

From a single tube to a 7-way bundle

The 7/4 tube for single-cable routes, the 14/10 assemblies for feeder and distribution routes.

7/4 single tube User connection

Material: PP-PA composite
Inner surface: Solid, low friction
Use: Direct burial

1-way 14/10 assembly Single-tube route

Sheath: HDPE
Grooves: Longitudinal
Tracer wire: Integrated

2-way 14/10 assembly Distribution

Sheath: HDPE
Grooves: Longitudinal
Tracer wire: Integrated

4-way 14/10 assembly Distribution

Sheath: HDPE
Grooves: Longitudinal
Tracer wire: Integrated

7-way 14/10 assembly Feeder

Sheath: HDPE
Grooves: Longitudinal
Tracer wire: Integrated

Technical data for both types

The 7/4 single tube and the 14/10 assembly side by side.

Parameter	7/4 single tube	14/10 assembly
Construction	PP-PA composite	HDPE tube and sheath
Inner surface	Solid, low friction	Low friction with longitudinal grooves
Configuration	Single tube	1, 2, 4 or 7 ways
Colour code	DIN VDE 0888	S12 or no colour
Operation temperature (°C)	−40 to +60	−40 to +60
Storage temperature (°C)	−40 to +60	−40 to +60
Installation temperature (°C)	−20 to +50	−20 to +50
Tracer wire	—	Integrated under the sheath
Installation	Direct burial	Direct burial
