Aerial Microduct

Name: Aerial Microduct
Brand: AD-Tech

UV-resistant microduct for aerial installation on poles and messenger wire.

Pole-mounted No trenching Up to 50 bar

Key specifications

Air pressureup to 50 bar during blowing

Tensile strengthsuited to aerial spans of 10 to 200 m

Maintenance costup to 30% lower than ADSS cable

Installation timeup to 20% shorter than ADSS cable

Mountingexisting utility or lighting poles, no ground excavation

Download catalog

CatalogPersian·Coming soonTechnical proposalEnglish·38 pages·13.8 MBCatalogEnglish·15 pages·3.7 MB

Price & stock enquiry

Fill in the form and a sales engineer will contact you within 24 business hours.

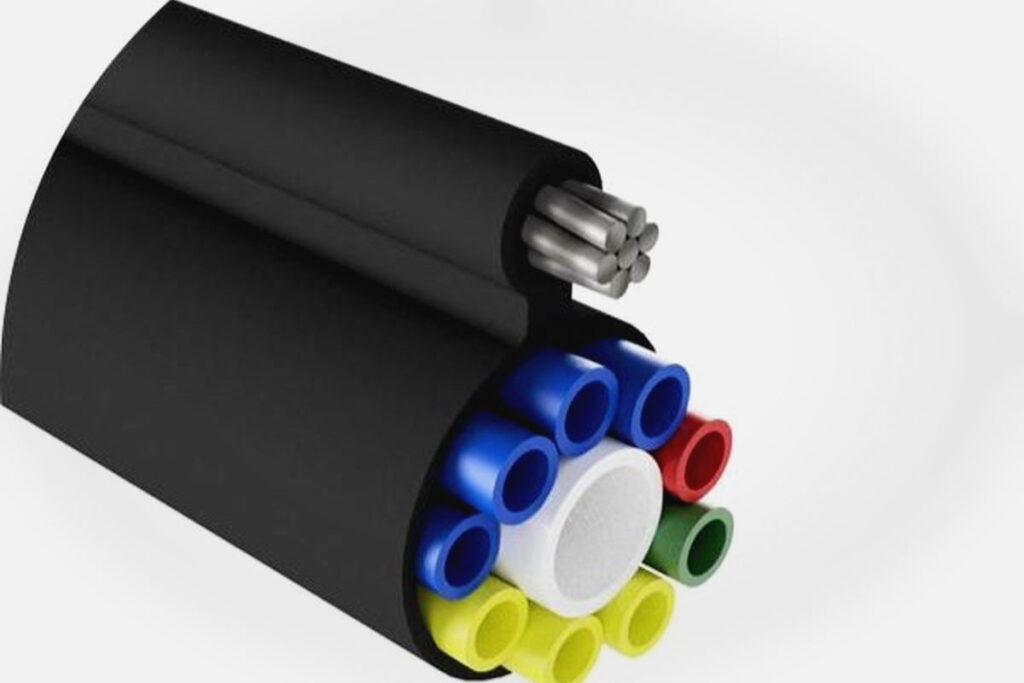

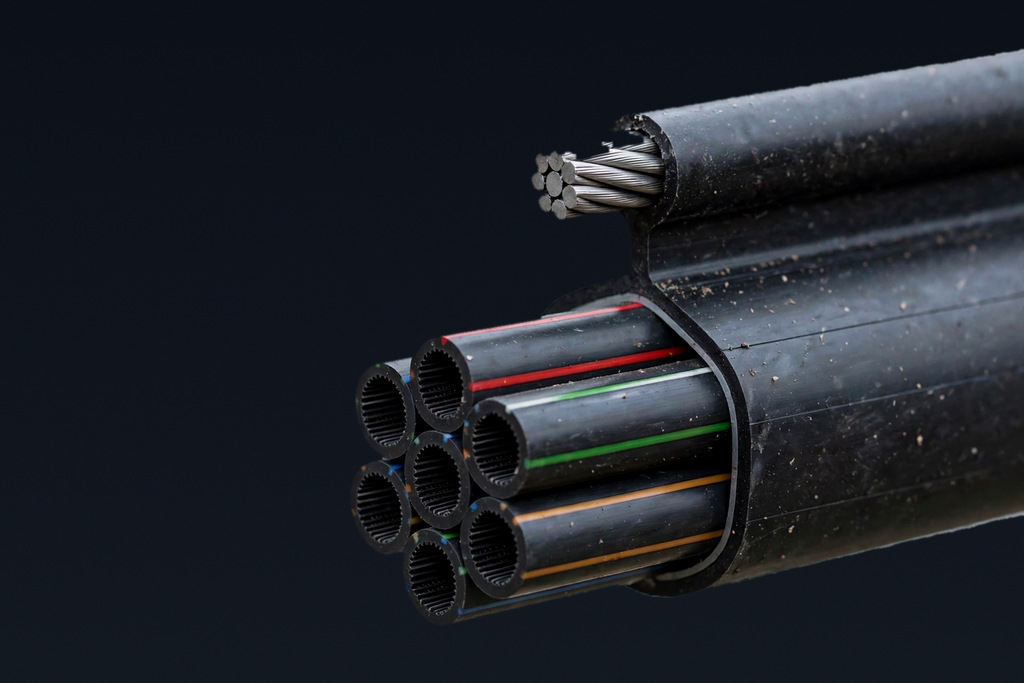

Aerial microduct is a UV-stabilised duct for installation on poles and messenger wire. It protects the fiber route above ground where trenching is not possible or not economical.

Key features

UV-stabilised HDPE compound for outdoor exposure.
Consistent stiffness for controlled sag between supports.
Compatible with standard aerial clamps and fittings.
Available in coils for long spans.

Applications

◈

Rural and intercity routeswhere trenching is difficult or expensive

◈

Future growthreserved paths for extra capacity, with no fibre cutting or splicing at height

Aerial solution

Aerial FTTH without trenching

An aerial FTTH route that needs no digging: the micro-duct bundle is installed on existing lighting or power poles in rural areas or wherever trenching is impractical. Compared with ADSS cable there is no fibre splicing in the air, and vacant pathways stay available for future expansion.

Cost effectiveReduce FTTH deployment cost by 20% versus ADSS
Time efficientReduce deployment duration by 30% versus ADSS
Future-proofInstall once and keep vacant pathways for future expansion
RobustProtects fibre cables against extreme weather
Installer-friendlySame architectures, components, cables, crews and tools as underground work

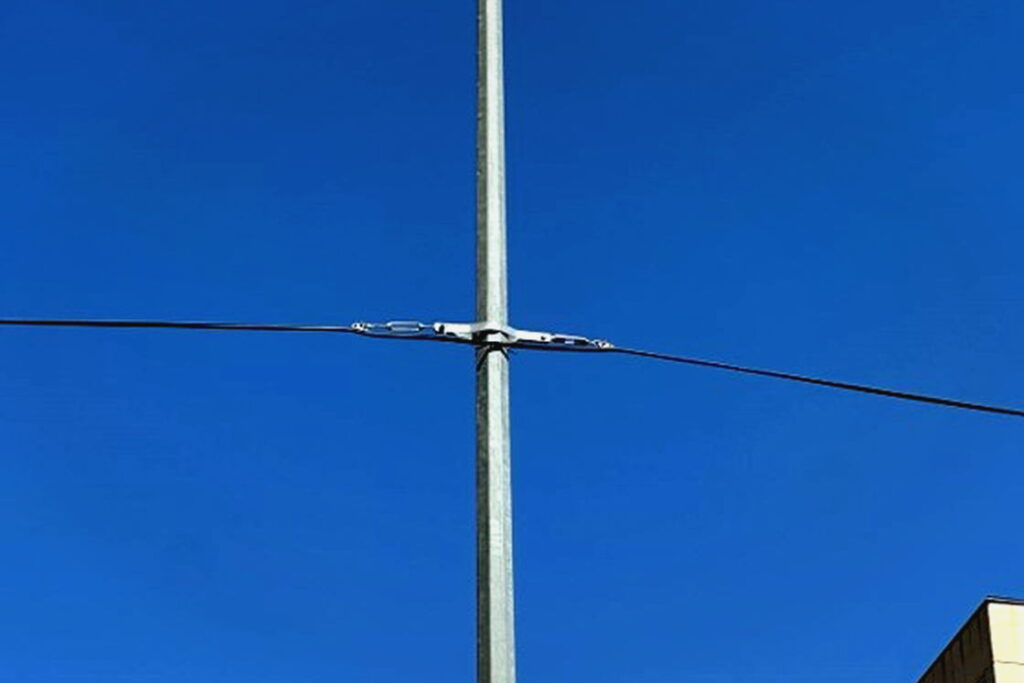

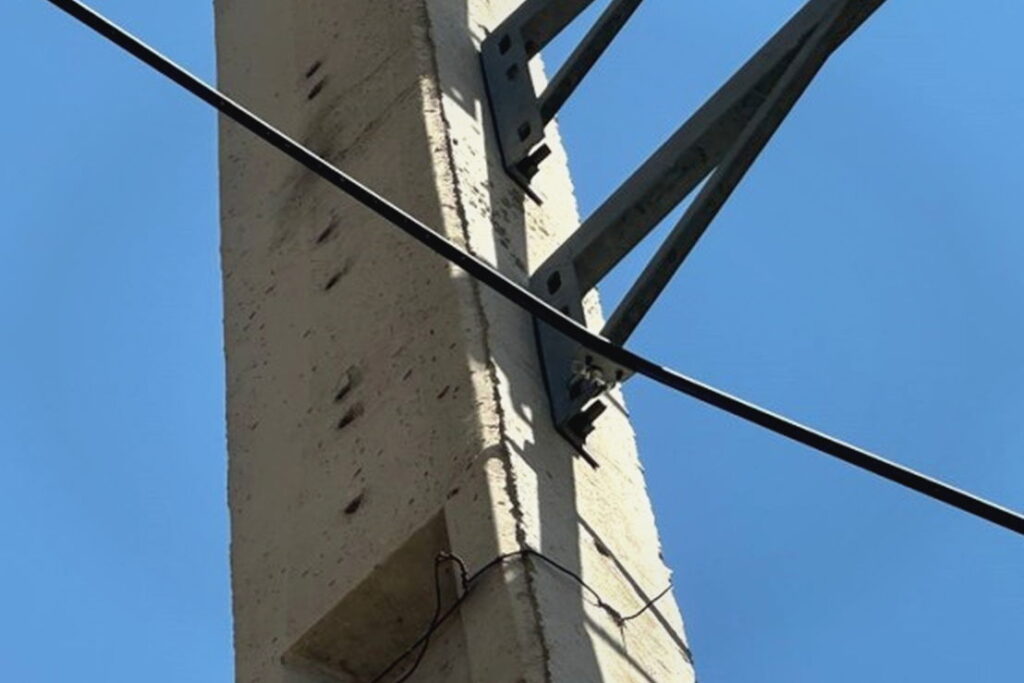

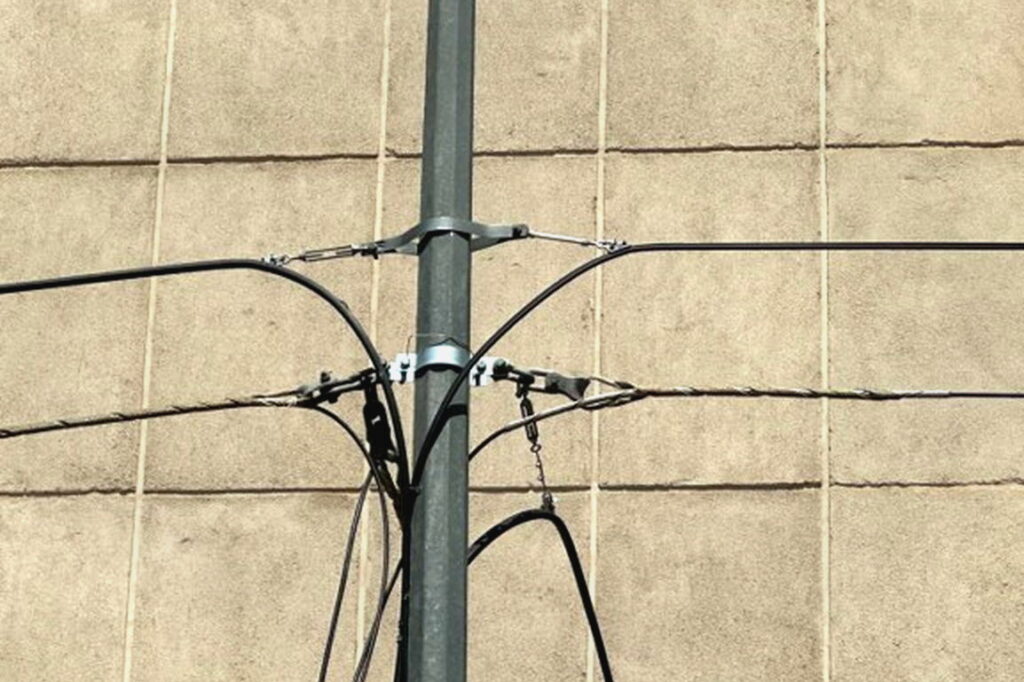

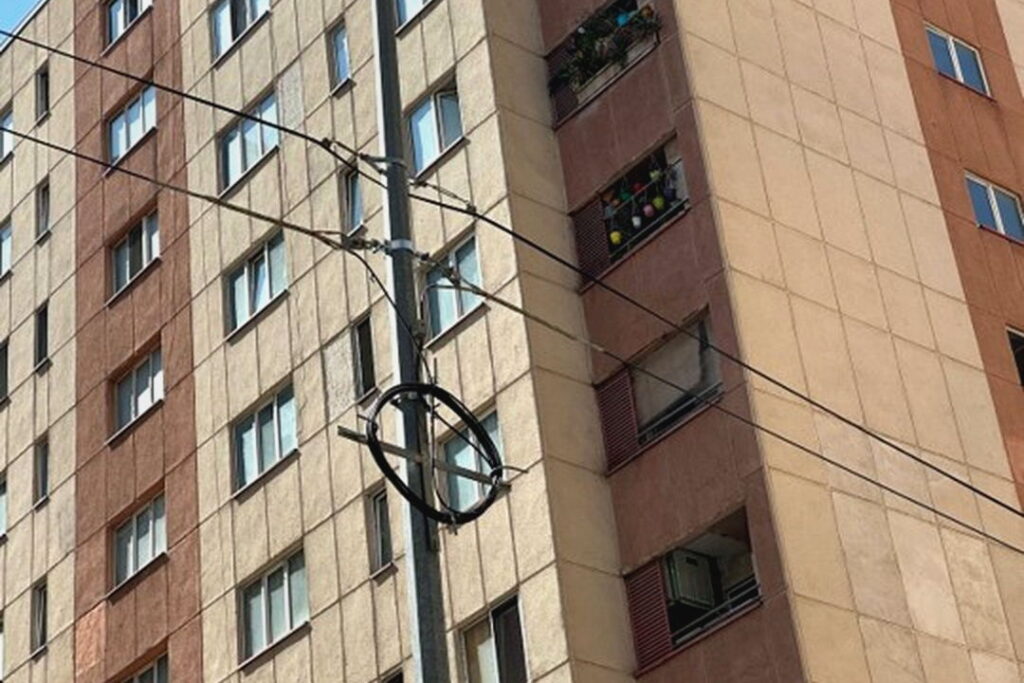

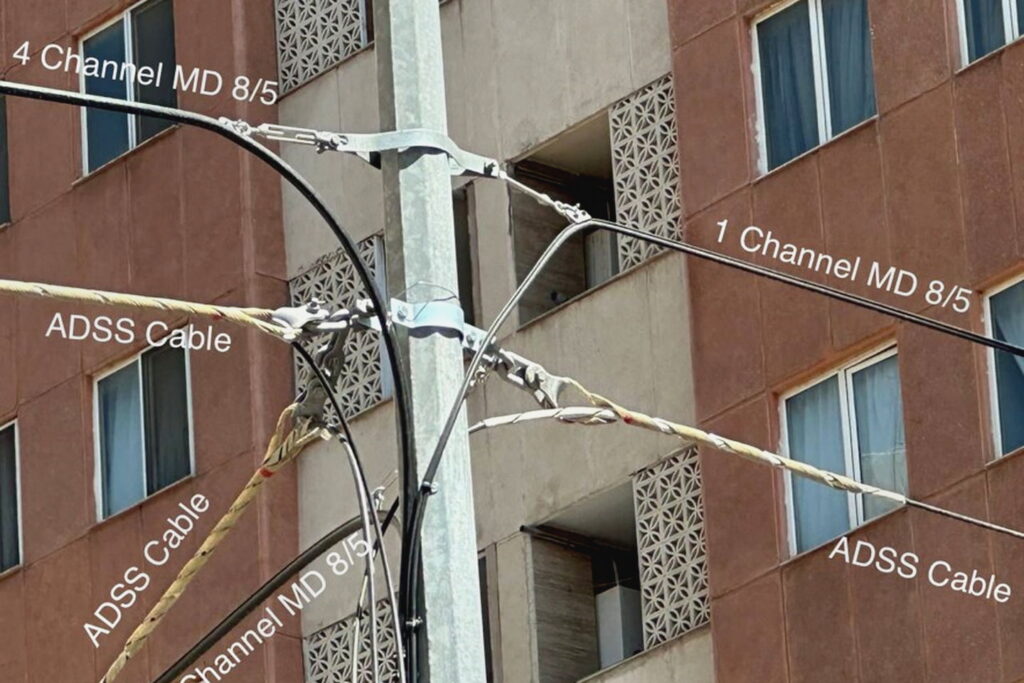

Aerial FTTH without trenching — Aerial micro-duct installed on a utility pole

Product range

Five profiles for every network segment

All profiles use the 8/5 mm tube, from user connection to feeder.

1 Way User connection

Tube size: 8/5 mm
Micro-ducts: 1
Weight: 200 g/m
Long-term tension: 17.5 kN

4 Way Access connection

Tube size: 8/5 mm
Micro-ducts: 4
Weight: 391 g/m
Long-term tension: 24.4 kN

7 Way Distribution connection

Tube size: 8/5 mm
Micro-ducts: 7
Weight: 540 g/m
Long-term tension: 26.8 kN

9 Way Feeder connection

Tube size: 8/5 mm
Micro-ducts: 9
Weight: 642 g/m
Long-term tension: 28.5 kN

12 Way Feeder connection

Tube size: 8/5 mm
Micro-ducts: 12
Weight: 787 g/m
Long-term tension: 35.0 kN

Full technical data

The five profiles side by side.

Parameter	1 Way	4 Way	7 Way	9 Way	12 Way
Tube size (mm)	8/5	8/5	8/5	8/5	8/5
Micro-ducts	1	4	7	9	12
First sheath thickness (mm)	0.7	0.7	0.7	0.7	0.7
Second sheath thickness (mm)	1.3	1.3	1.3	1.3	1.3
Weight (g/m)	200	391	540	642	787
Width (mm)	21.2	35	40.28	52	45.2
Height (mm)	12	20	25.86	28	36
Max tensile, long term (N)	17,500	24,400	26,800	28,500	35,000
Max tensile, short term (N)	28,000	39,000	42,000	45,000	56,000
Bending radius, installation (mm)	300	400	520	560	750
Bending radius, operation (mm)	400	500	650	660	850
Max span, NESC heavy loading (m)	150 / 240 / 530	160 / 245 / 450	155 / 235 / 420	150 / 220 / 360	165 / 250 / 450

Figures are taken from the Aerial Micro-Duct catalog (Oct 2024). The three values in the span row are the three figures the catalog reports for NESC heavy loading.

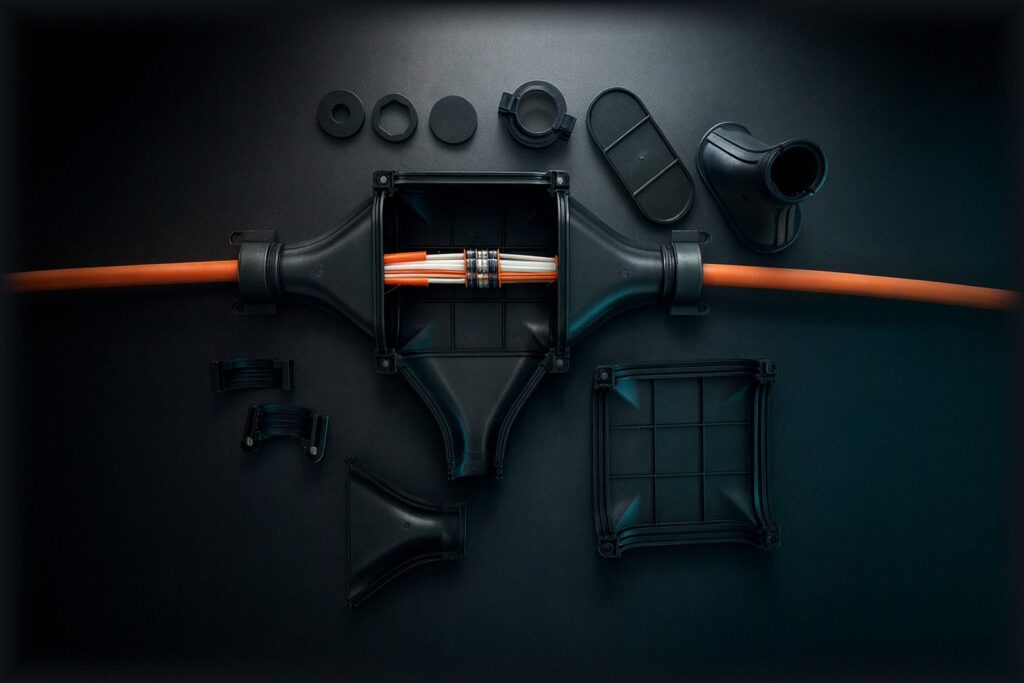

Accessories
