Super Micro Trencher

A heavier micro trencher for longer routes and tougher ground conditions.

TM-45 Diamond blade Up to 6 m/min

Key specifications

Trench width1.5 to 3.5 cm
Trench depthup to 50 cm
Digging speedup to 6 m/min

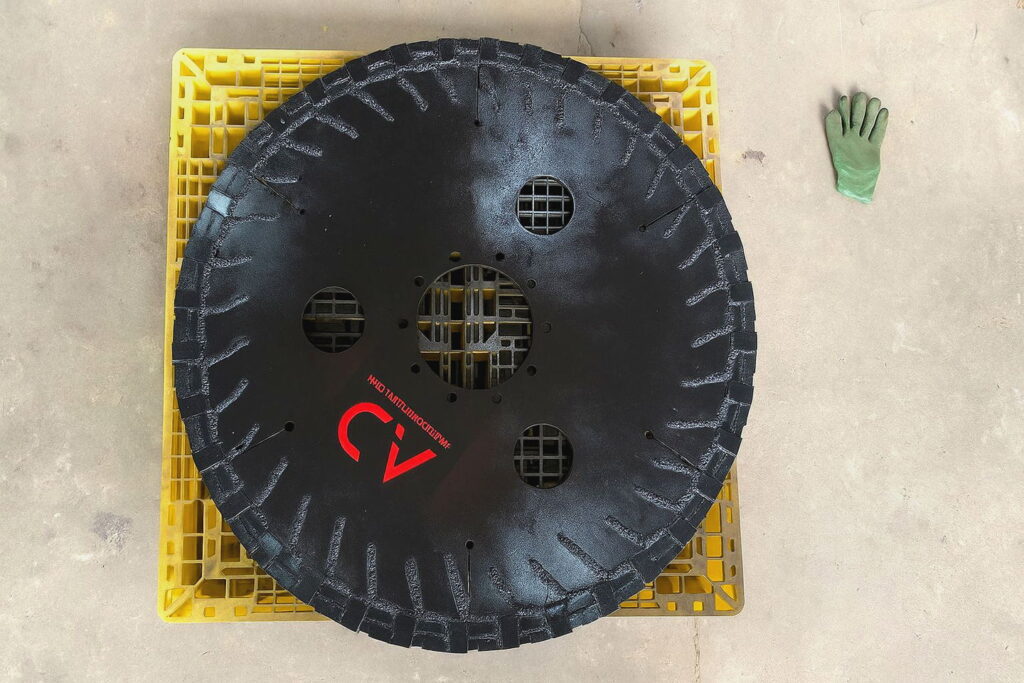

Bladeproprietary AD-Tech diamond blade
Microduct handling armup to 1 t, hydraulically driven
Cooling tank600 L with industrial pump and misting nozzle
Download catalog
CatalogPersian·Coming soonCatalogEnglish·Coming soon

Price & stock enquiry

Fill in the form and a sales engineer will contact you within 24 business hours.

Video

See the product in action

AD-Tech Super Micro Trencher : SMT-45YouTube

The super micro trencher is a heavier version of the micro trencher for longer runs and tougher ground. It keeps the shallow-cut method while offering more power and stability on site.

Key features

  • Higher cutting power for longer routes.
  • Reinforced frame and drive for demanding ground.
  • Same shallow-slot method as the micro trencher.
  • Compatible with the standard blade range.
Applications

Applications

◈
Spoil-free trenchingno digging spoil, so no secondary clean-up operation
◈
High capacityup to 144 cores in four-tube constructions on a flat, even bed
Field work

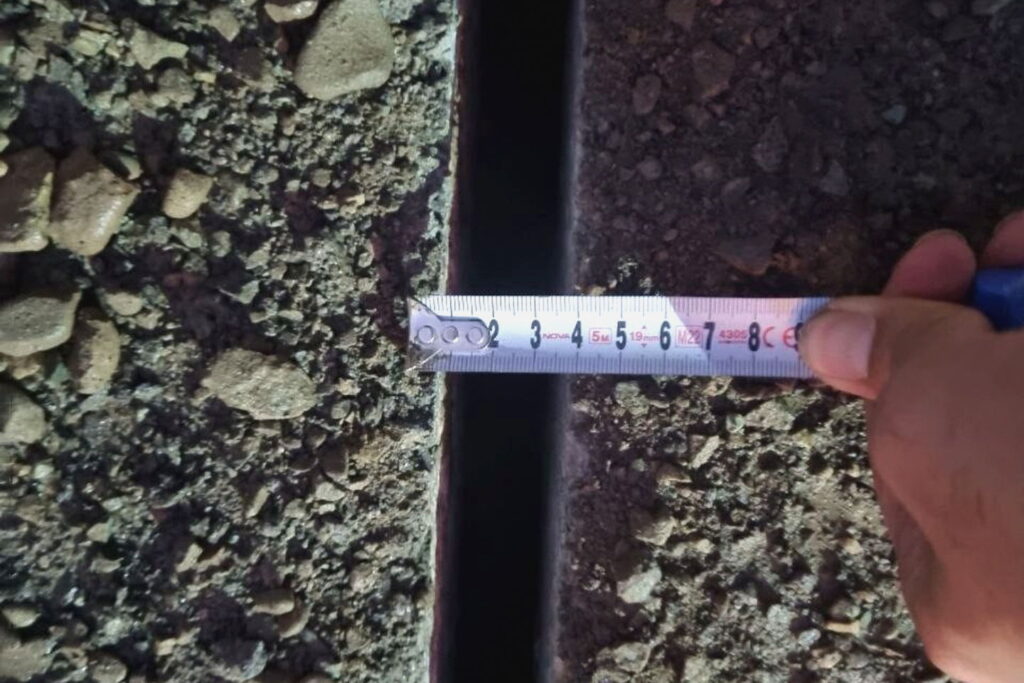

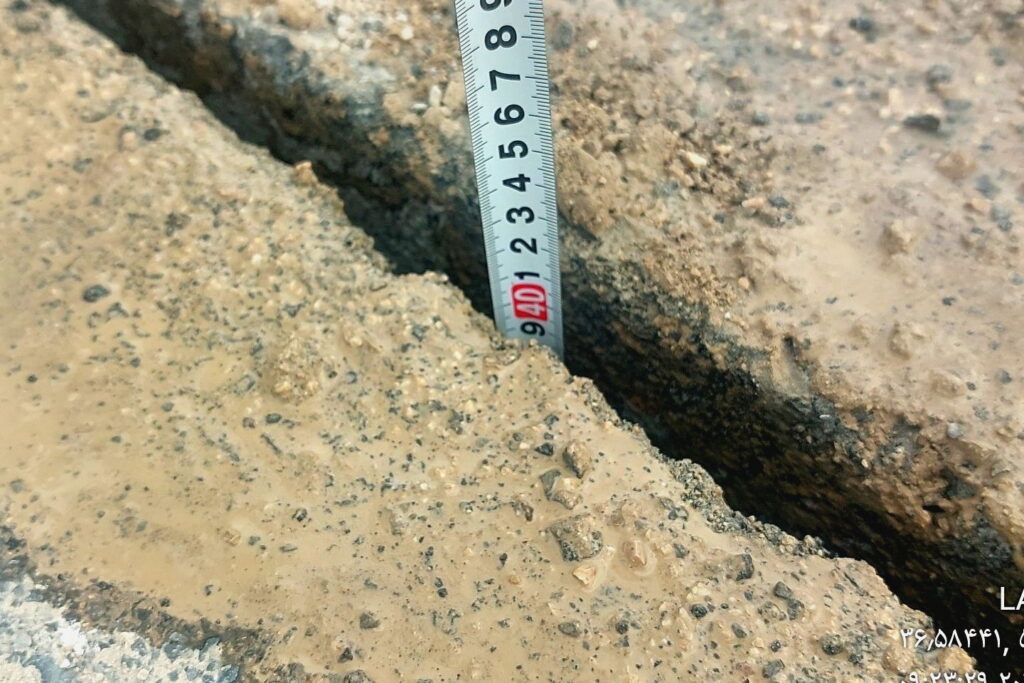

Trench cut by the Super Micro Trencher blades

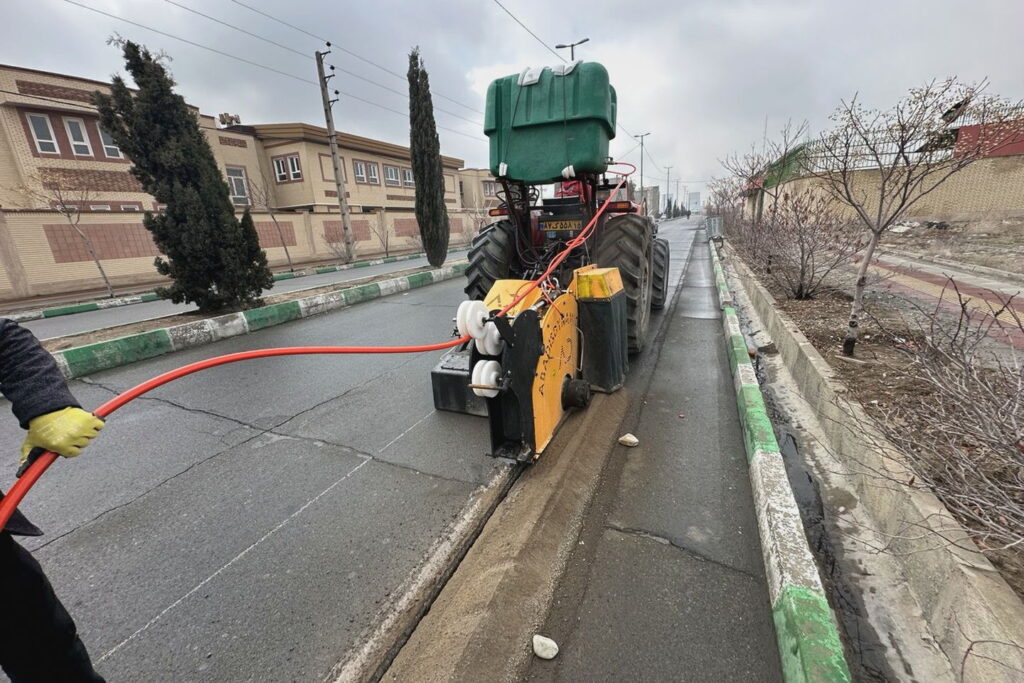

A narrow, continuous cut along a city kerb — the surrounding asphalt and kerb stones stay untouched, and the working depth is checked on site.
