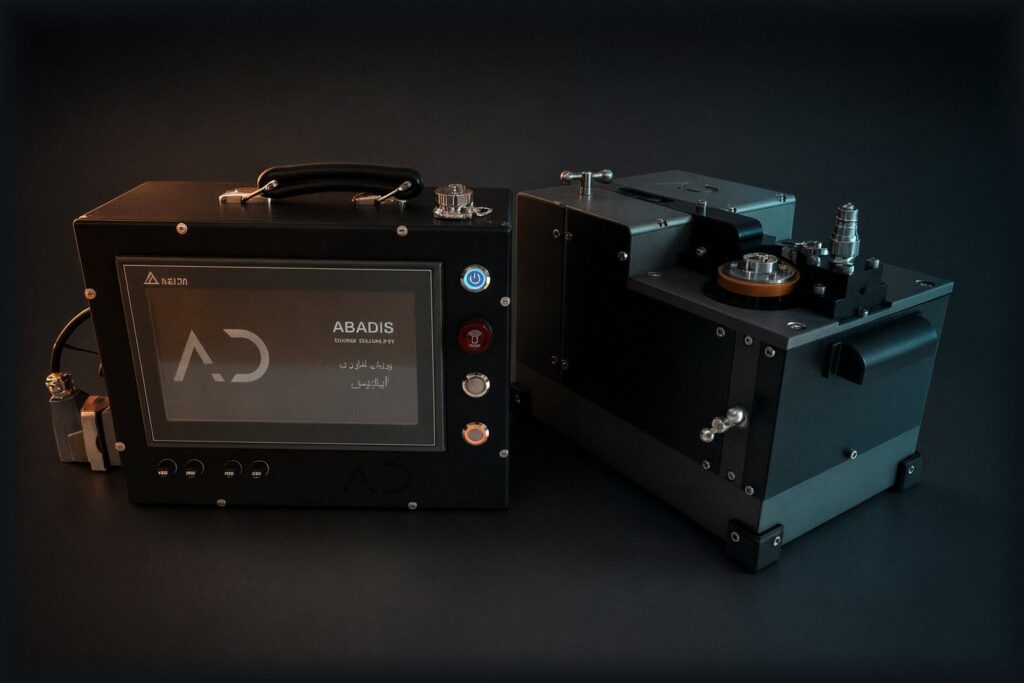

Fiber Blowing Machine

Name: Fiber Blowing Machine
Brand: AD-Tech

Fiber blowing machine for installing cable into microduct with controlled pressure and speed.

SmartJet™ 120 m/min Up to 40 bar

Key specifications

Microcable diameter0.5 to 7.5 mm

Duct outer diameter4 to 16 mm (four V-groups)

Blowing speed1 to 120 m/min

Air pressure5 to 40 bar

Blowing torque control100 to 1000 N·m

Max single-length runup to 3000 m

Anti-slip response time25 ms

VersionsSmartJet™, SmartJet™ Pro, SmartJet™ ProMax

Download catalog

CatalogPersian·Coming soonCatalogEnglish·10 pages·5 MB

Price & stock enquiry

Fill in the form and a sales engineer will contact you within 24 business hours.

Video

See the product in action

OPTICAL FIBER BLOWING MACHINEYouTube

OPTICAL CABLE BLOWING MACHINEYouTube

The fiber blowing machine installs cable into microduct using compressed air. Controlled pushing force and air flow let the cable travel through bends and long duct runs without tension on the fiber.

Key features

Adjustable pushing force and air pressure for different ducts and cables.
Digital length counter and speed indication.
Quick-change cable guides for common cable diameters.
Rugged frame for site use with an external compressor.

Applications

◈

FTTH networksblowing microcable into 3–16 mm ducts along urban routes

◈

Long runsthrough multiple FATs and duct bends without pressure loss, using the 40 bar compressor

Fiber blowing machine

Blowing with intelligent force and slip control

The Abadis blowing machine installs optical fibre cable into microduct. Anti-skid technology keeps the installation smooth and consistent even in difficult conditions; dedicated protection mechanisms keep the cable from harm while it is being shot; and precise cable control raises shooting speed, which lowers the cost and the disruption to residents.

Force controlPrevents cable breakage and controls speed intelligently while capping torque
Slip controlMinimum surface pressure on the cable; stops on obstruction with a 25 ms reaction time
Obstruction detectionAutomatically works past a connector or a point obstruction by moving back and forth
Accurate distanceTwo sensors measure at once, removing slip error from the length reading
Speed rampingForward and backward ramps are controlled separately, so no excess tension reaches the cable
Touch displayLive speed, mechanical pressure on the cable and slip, on screen
Change while shootingEvery parameter stays editable mid-shot
Quick pulley changeSlide and swap without removing a screw; adjustable V-group rail

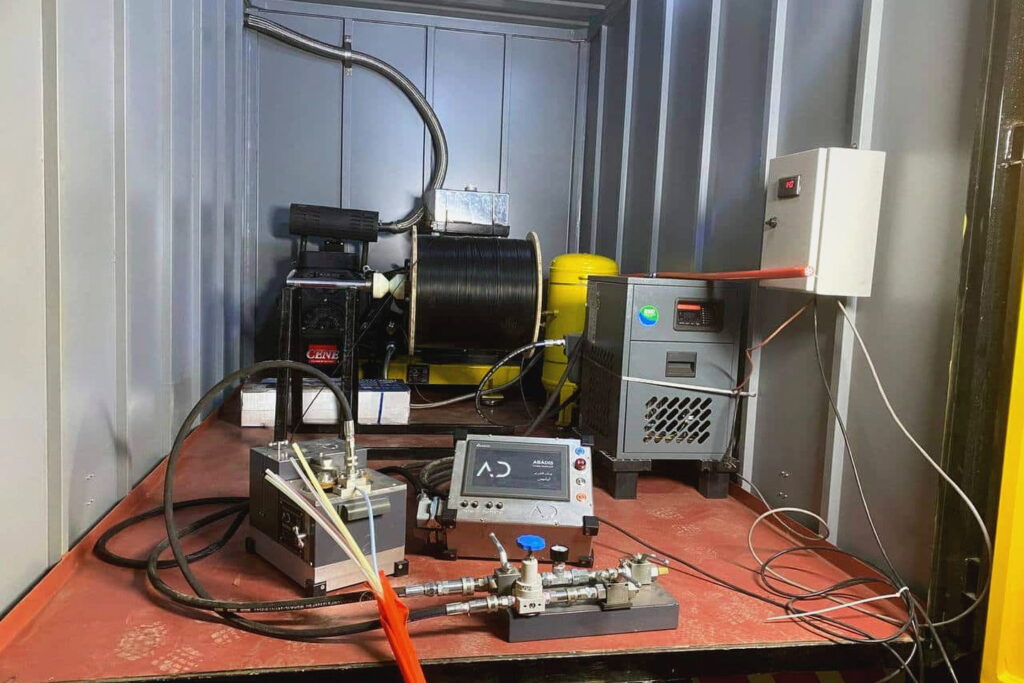

Blowing with intelligent force and slip control — Blowing machine at work on site

Field work

Blowing units ready for delivery

Every unit ships after its final test, in a rugged transport case with an accessory compartment.

Three blowing units on final test; each touch display is powered up.

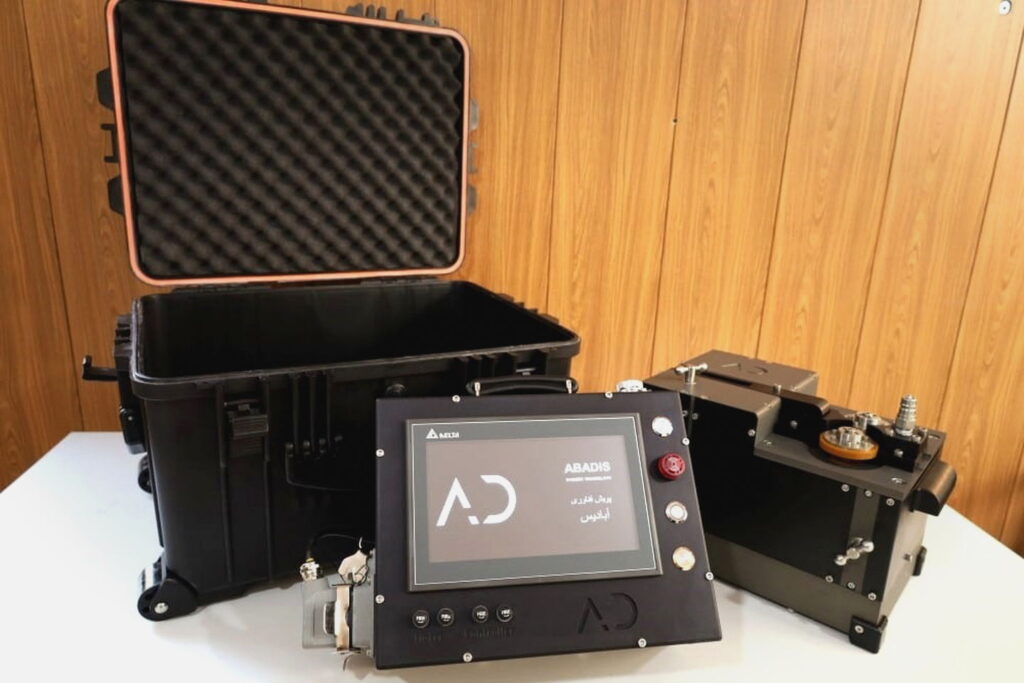

The unit inside its rugged transport case, with the accessory compartment.

Models

Four OCBM models

All four share the anti-skid system, torque control and smart speed control; the difference is motor power and display size.

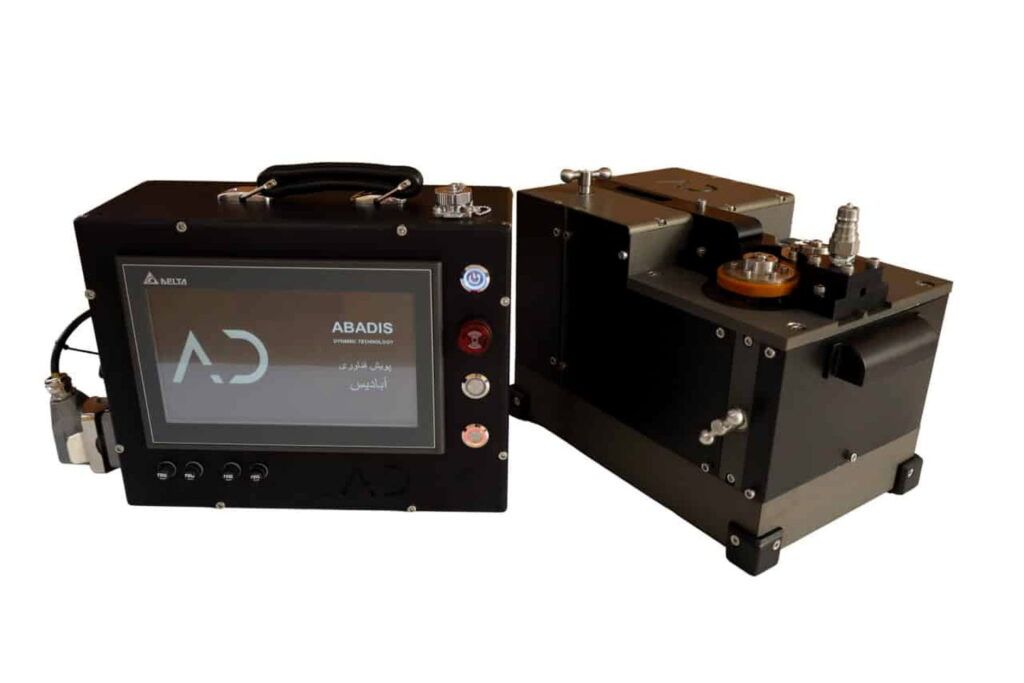

OCBM-V1 7" · 400 W

Power: 400 W
Display: 7"
Electrical box: Separate

OCBM-V2 7" · 400 W

Power: 400 W
Display: 7"
Electrical box: United

OCBM-V3 10" · 400 W

Power: 400 W
Display: 10"
Electrical box: Separate

OCBM-V4 10" · 750 W

Power: 750 W
Display: 10"
Electrical box: Separate

Technical data

The working range of the Abadis blowing machine.

Parameter	Value
Cable diameter	0.5 to 7.5 mm
Outer duct diameter	4 to 16 mm (four V-groups, built to order)
Shooting speed	1 to 120 m/min
Air pressure	5 to 40 bar
Shooting torque	100 to 1000 N·m
Stop reaction time	25 ms
Display	Digital and touch (7" or 10")
Access levels	Three layers, with reporting
