Microduct production line with dimensional control and inner-layer extrusion.
Fill in the form and a sales engineer will contact you within 24 business hours.
The microduct production line extrudes HDPE duct with a controlled inner layer and winds it into coils. Diameter, wall thickness and inner surface quality are monitored so the duct performs correctly during cable blowing.

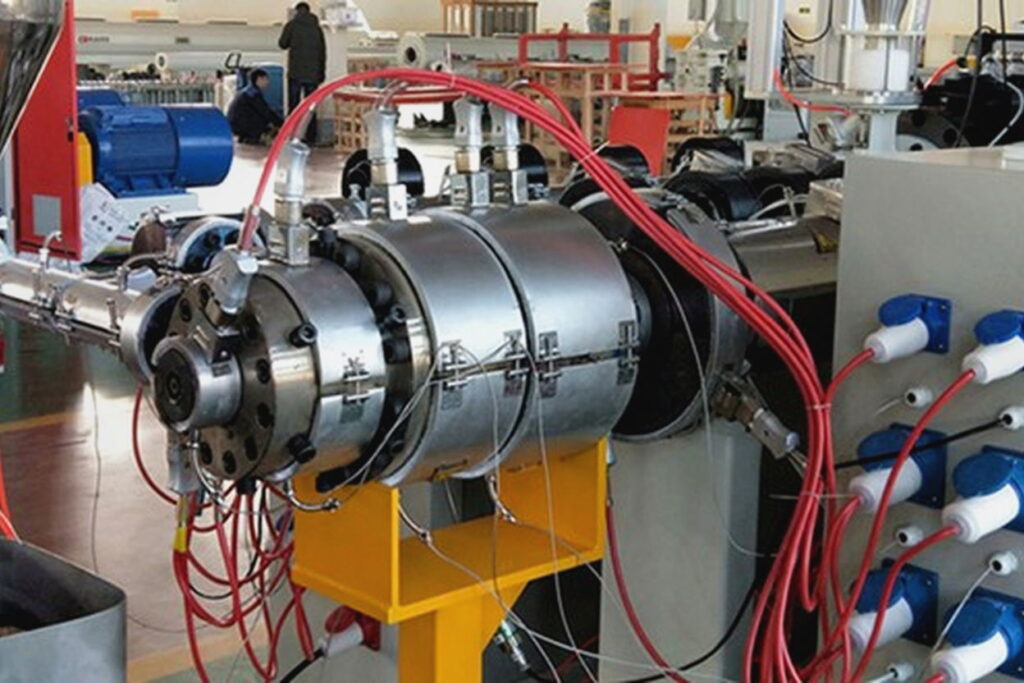

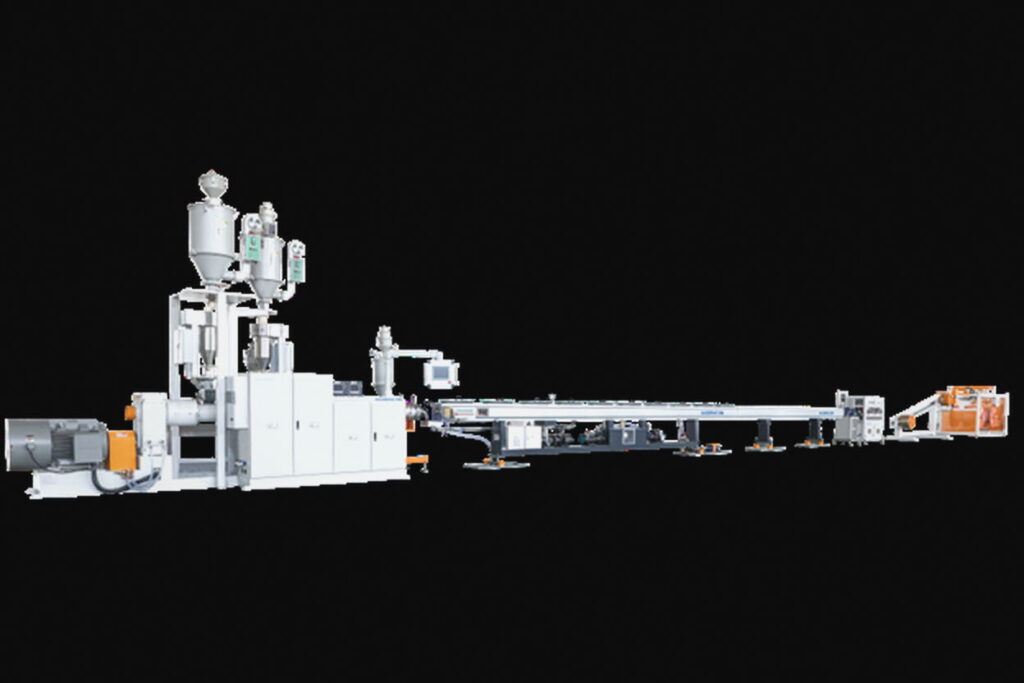

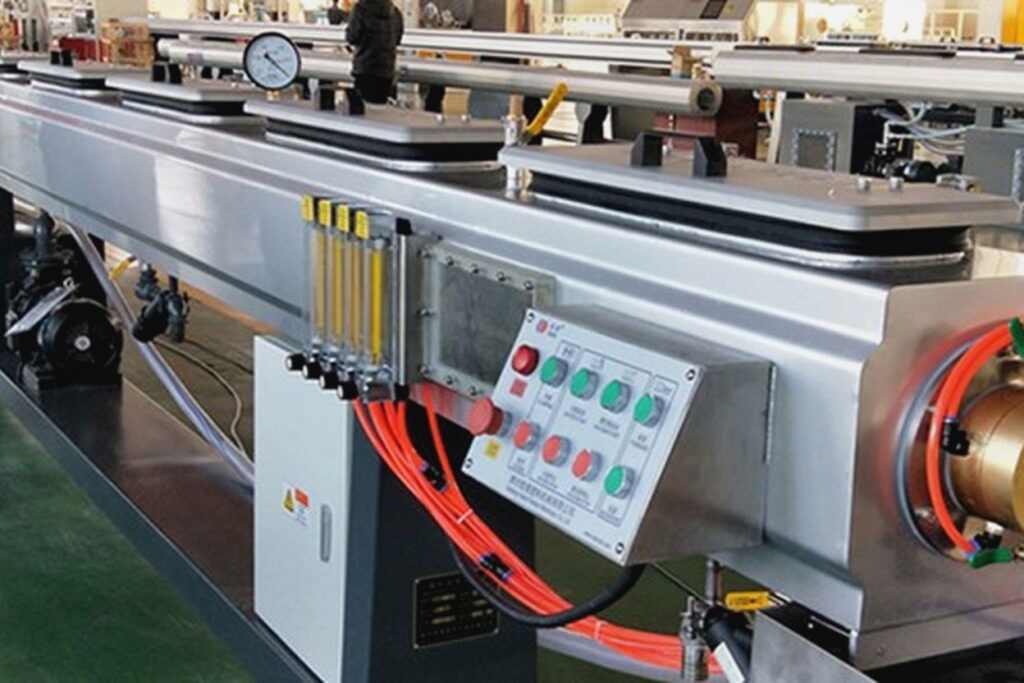

The Abadis microduct line produces 8/5 and 14/10 pipe with a silicone core: a five-stage HDPE extruder, a three-layer co-extrusion die head, a combined multi-sheet water-bath calibrator and full Delta PLC control. The pipe carries a PE layer plus a 0.2 mm silicone inner layer (97% PE + 3% silicone) and a ribbed inner surface tuned for fibre blowing.

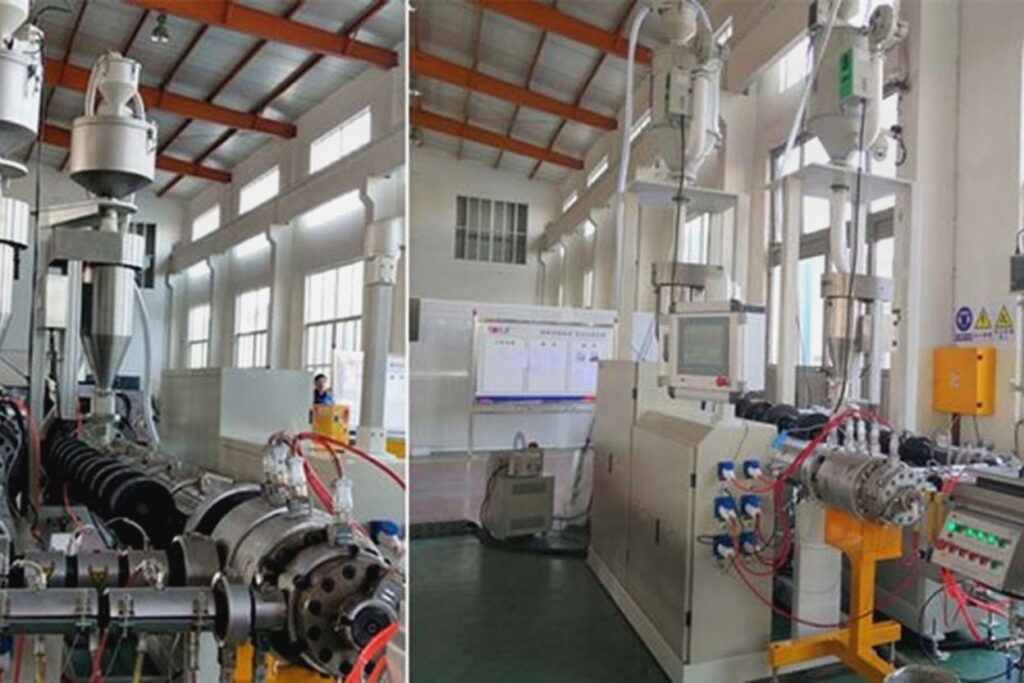

Twelve main machine sets; the four key stations are shown here.
The catalog's TECHNICAL PARAMETER section.
| Parameter | Value |
|---|---|
| Production scope | Φ 8 to 16 mm |
| Production speed | 20 m/min (8/5 and 14/10) |
| Cooling water temperature | 10 to 20 °C |
| Haul-off speed | up to 100 m/min |
| Coiling speed | up to 120 m/min |

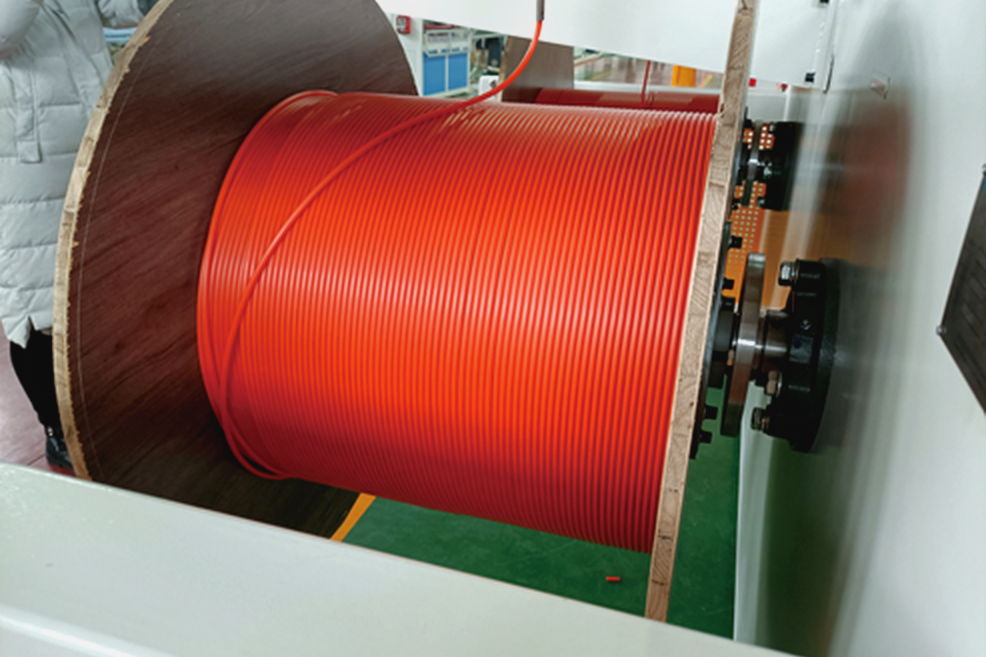

| Package | up to 3000 m per coil (Φ14 × 2.0 mm) |
| Installed power | 140 kW/h |
| Actual power | 70 to 80 kW/h |
| Water consumption (circulating) | 0.02 to 0.03 m³ per 24 h |
| Air consumption | 1.5 m³/h |
| Line dimensions (L×W×H) | 40000 × 2500 × 3000 mm |
| Container loading | 1 × 40 ft GP |
| Delivery time | 90 days |
| Warranty | One year |
Figures are quoted from PART4 TECHNICAL PARAMETER of the Microduct Production Line catalog (July 2024). Input power is three-phase four-wire 380 V, 50 Hz; a different supply adds 5% to the price.
