Bundle production line for multi-duct coils.
Fill in the form and a sales engineer will contact you within 24 business hours.

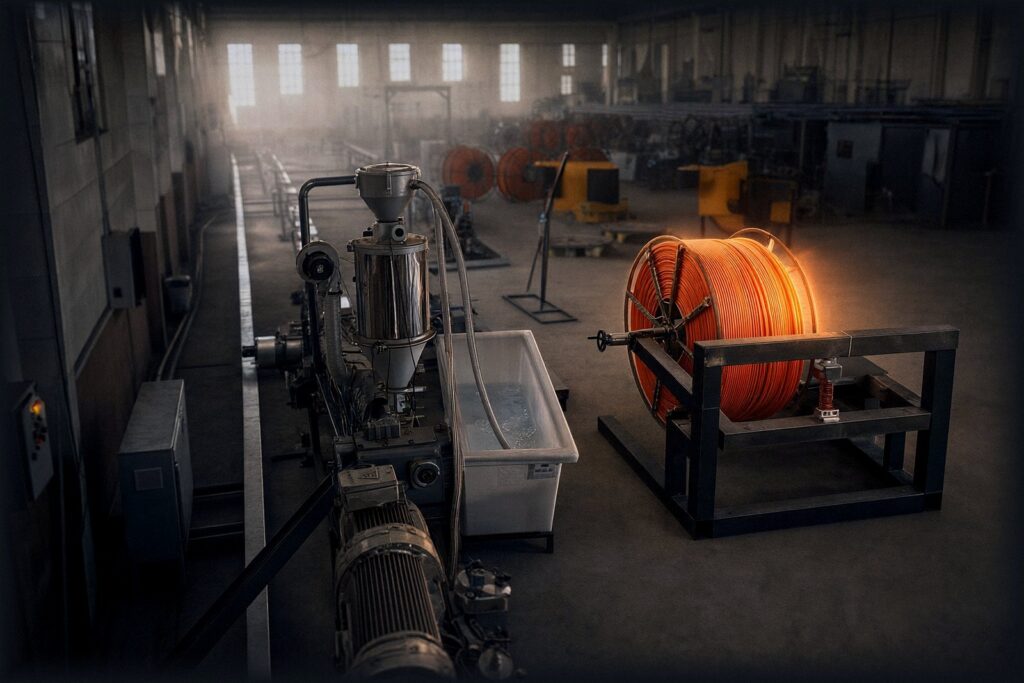

The bundle production line groups several microducts into one coil with a common outer sheath. Bundles simplify laying several routes at once and keep the ducts organised at joints and cabinets.

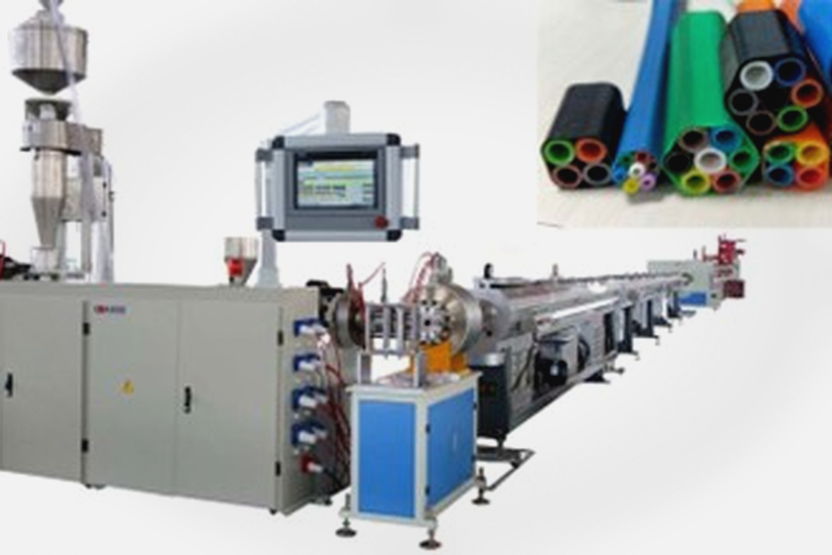

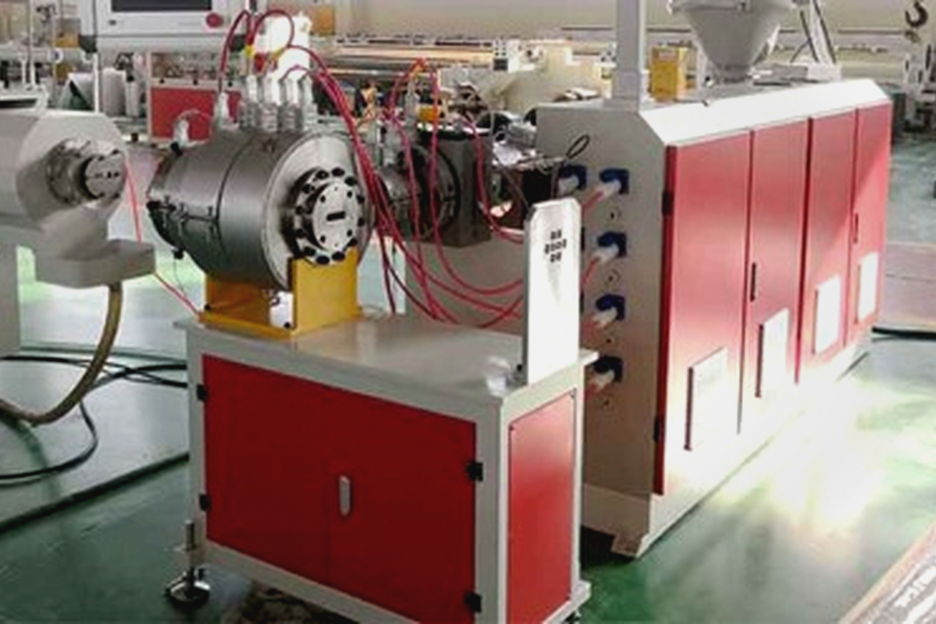

This line gathers finished microducts and extrudes an HDPE outer sheath over them to build a 4 or 7-way bundle; both 8/5 and 14/10 configurations are supported. Seven passive uncoilers, each on its own drum, keep every tube on an independent path, and the cross-type die head wraps the bundle with an exact layout.

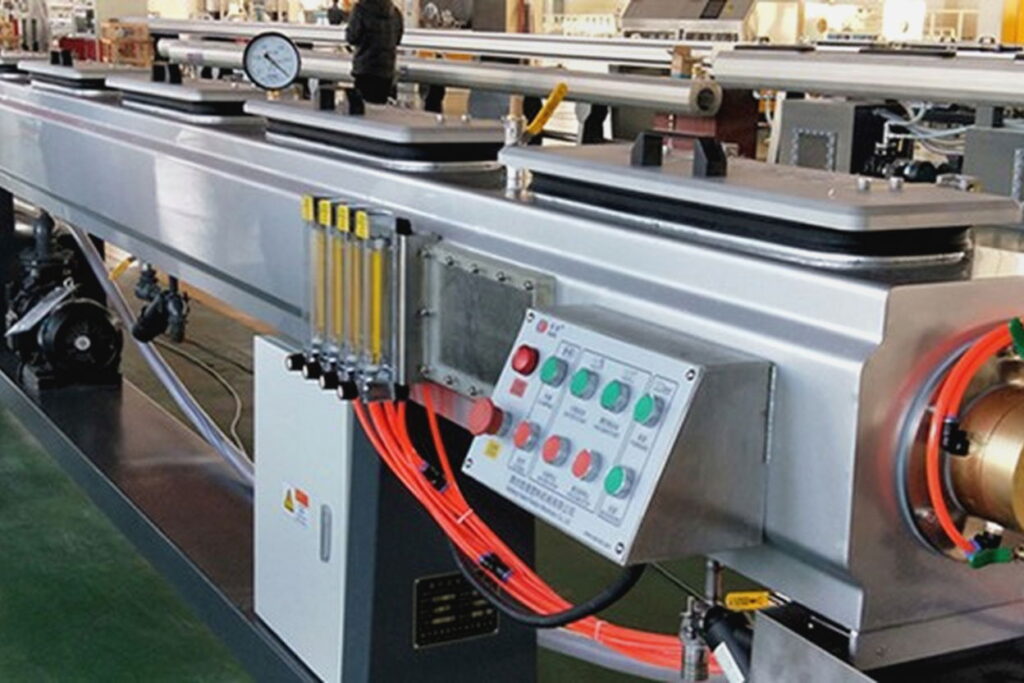

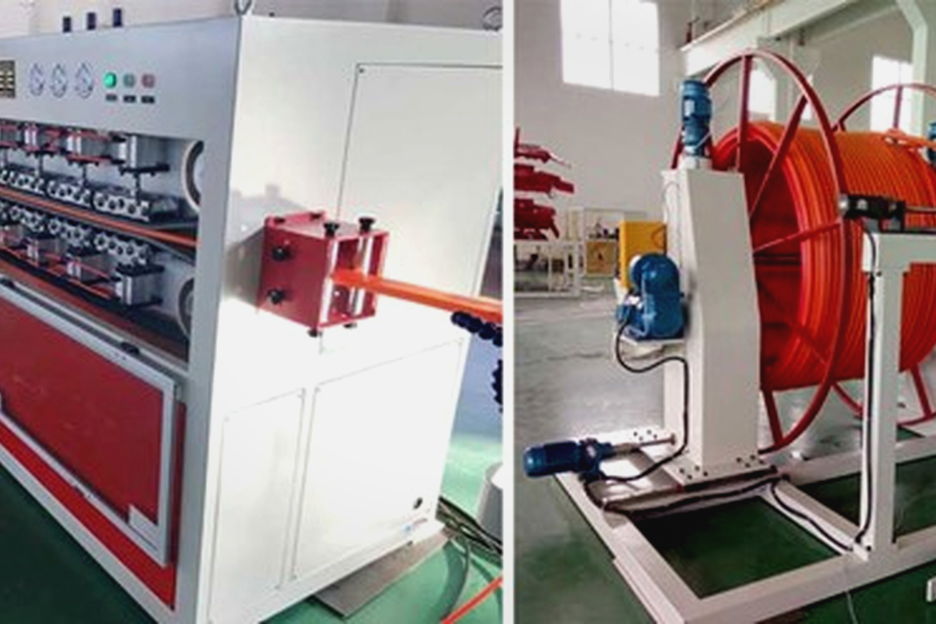

Ten main machine sets; the representative stations are shown here.
The catalog's USE CONDITIONS section.
| Parameter | Value |
|---|---|
| Site | Indoor |
| Ambient temperature | 0 to 45 °C |
| Humidity | 85% without condensation |
| Input power | Three-phase four-wire 380 V, 50 Hz |
| Overall size (L×W×H) | 35 × 4 × 3.5 m |
| Installed power | 110 kW/h |
| Actual power | 55 to 70 kW/h |
| Production speed | 20 m/min for a 4-way 14/10 bundle |
| Delivery time | 90 days |
| Warranty | One year |
Figures come from the Microduct Sleeving Line catalog (July 2024); 4 and 7-way configurations are available for both 8/5 and 14/10. Technical manuals, electrical and installation drawings are supplied in English and Persian.
Send your project details and our technical team will size it and recommend.
