GIS Network Design Software

Name: GIS Network Design Software
Brand: AD-Tech

GIS-based network design software for routing and estimating fiber projects.

GEIO-BIT GIS-based Cloud

Key specifications

Architecturecloud-based information structure

Client softwarecross-platform

Compatible softwareQGIS and other standard, open-source tools

Access controlfull, custom control by user privilege level

Integrationconnects to third-party APIs and databases

Reportingcustom reports over geospatial and non-geospatial data

Download catalog

CatalogPersian·Coming soonCatalogEnglish·26 pages·9.1 MB

Price & stock enquiry

Fill in the form and a sales engineer will contact you within 24 business hours.

GIS-based network design software helps plan fiber routes on a map, estimate quantities and produce the documents needed for construction. Designers place cabinets, ducts and cables, and the software reports lengths, materials and costs.

Key features

Route planning on GIS maps with existing infrastructure layers.
Automatic length and bill-of-quantities calculation.
Cable and duct assignment with capacity checks.
Export of drawings and reports for construction teams.

Applications

◈

Design and as-builtrecord as-built state and maintain the network in one platform

◈

Network monitoringcellular KPI monitoring with data collection and processing

Network design software

GEO-BIT: one GIS platform for design and maintenance

GEO-BIT brings every piece of network and service data onto one location-based platform: GPON design on satellite imagery, records of excavation routes, microduct and cable, control of implementation and operation, and custom reporting over geo and non-geo data. The cloud data structure lets every user read, write and edit the same map at the same time, without a user limit.

Cloud structureEveryone works on one map at the same time, with no user limit
Cross-platformDesktop, tablet and mobile clients on one data source
Access controlFull custom privilege control per user and role
System integrationNMS, OSS, inventory and workforce management
One data sourceAll network and service information, by location
Custom reportsGeo and non-geo queries and reports under access rules
Lifecycle coverageDesign, implementation, operation, maintenance and optimisation
Cellular KPICollection, processing and reporting of mobile network data

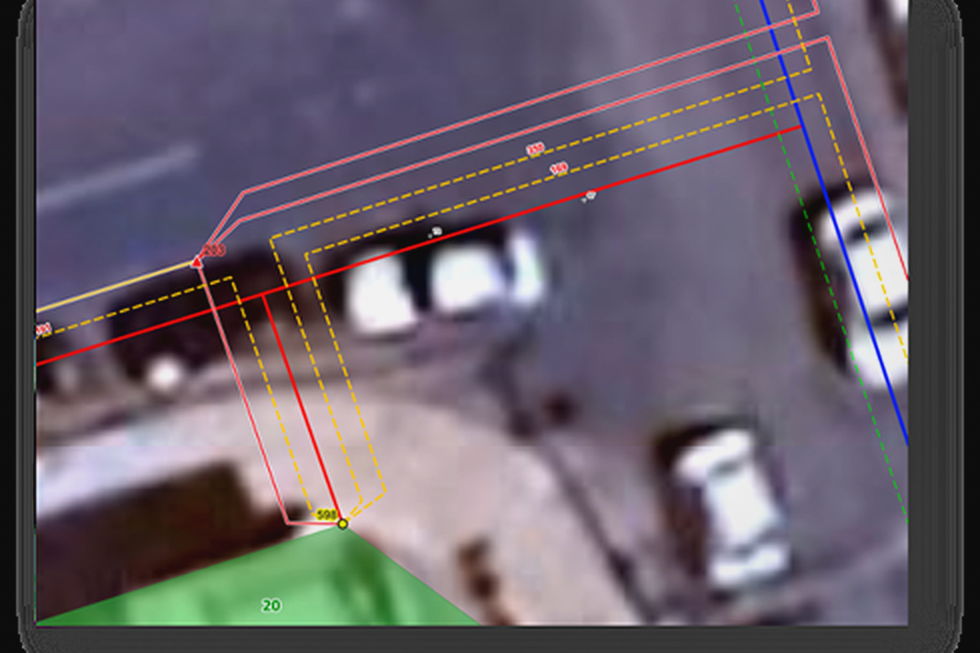

GEO-BIT: one GIS platform for design and maintenance — GPON network design on the map

Capabilities

Four work stations

One dataset, four working views — from design to field collection.

Network design GPON on the map

Base maps: Satellite imagery and OSM
Calculation: FAT ports from block population
Routes: Excavation, microduct, cable

Implementation Project control

Status: Excavation, concrete, asphalt
Testing: Microduct ball test
Installed: FAT, ODC and closures

Operation Operation and expansion

Topology: Cable and fusion
Ports: Splitter and FAT
Analysis: Impact of an outage

Field work Mobile app

Tasks: Assign and navigate
Maps: Online and offline
Capture: Points, lines, areas

Network lifecycle coverage

Each row is a capability the catalog lists for that stage.

Capability	Design	Implementation	Operation
GPON network design	✓
FAT ports from population	✓
Excavation route and depth	✓	✓
Microduct and closures by location	✓	✓	✓
Ball test and implementation control		✓
Fusion and port maps		✓	✓
NMS and OSS connection			✓
Outage impact analysis			✓
Geo and non-geo reporting	✓	✓	✓
Offline field app		✓	✓
Cellular network KPI			✓

The table is built from the capability list in the official GEO-BIT presentation; the columns are stages of the network lifecycle, not product editions.
